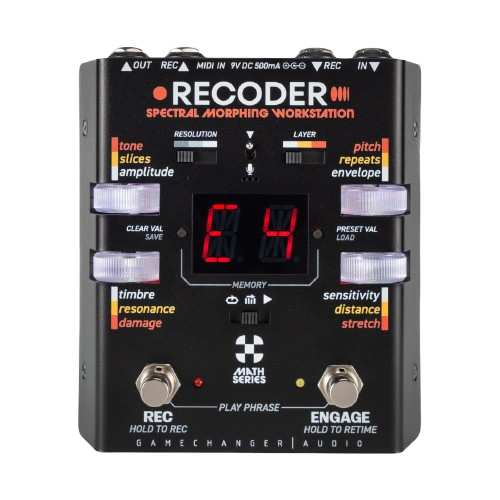

The RECODER features a mono signal path for all inputs and all outputs.
Not quite, it features 234 total blank slots ranging from A1 to Z9 for you to fill in with your recordings.
It has four 1/4" mono jack connections: an Instrument Input, a Main Output, a buffered REC Input, and buffered REC Output. It also includes a built-in electret condenser microphone.
Yes. It offers full MIDI control over parameters using either MIDI over USB (Type-C) or via the dedicated 3.5mm TRS Type B MIDI Input. Please note it does not transmit a MIDI Output.
Please follow these steps to change the active MIDI channel:
-With the pedal unplugged from power, press and hold REC;
-While holding the REC, plug in the pedal;
-The first encoder will flash, and the display will tell you the currently active MIDI channel;
-Rotate the encoder to set the active MIDI channel;
-Release the REC to save the selected channel.
Each roller knob for each layer acts both as intensity of the parameter and a volume knob. Using many parameters at higher values simultaneously will also create a louder "sample".
In addition to this, the more similar the "sample" is to your current playing, the louder that "sample" may become. The pedal will see overlapping harmonics and intensify them.
The Recoder has practically no latency when in bypass (ENGAGE OFF) state - it's 1 millisecond.
When the pedal is in the ENGAGE state, there will be a small latency of 10 milliseconds in the output signal.
Latency will increase to up to 40 milliseconds, depending on the WHITE LAYER parameters and the RESOLUTION setting. Higher parameter values and higher resolution will mean more latency. In this way, you can choose between finer signal processing and latency.
It features a spectral processing engine running a high-resolution, FFT-based vocoder with a maximum of 1024 frequency bins and a 40 ms FFT window for max input latency.
Yes, it features three resolution positions: High (1024), Mid (512), and Low (256), which can also be toggled via MIDI overrides.
It includes 16 GB of total internal storage. It records at full fidelity (44100Hz, 16-bit) with no compression, allowing for a maximum phrase length of 10 minutes per slot.
The USB-C port is strictly used for firmware updates and MIDI over USB.
The port doesn't support:
-Power over USB-C;
-Audio Interface;
-Preset management (as per the current version).
The RECODER requires a 9V DC, center-negative power supply capable of delivering at least 500mA (not included in the box).
The product dimensions are 125 x 140 x 50 mm (4.92×5.51×1.97 inches) and it weighs approximately 600 g (1.3 lbs).
Most SDHC cards of at least 16GB, Class 10 rating, and read speed of at least 100MB/s will work for the RECODER; however, a significant number of them do not perform well due to large buffer sizes that are not suitable for the kind of read and write operations in the RECODER Pedal.
We have tested the following SD cards and can confirm that they will work:
| Manufacturer | Model |
|---|---|
| Intenso | Intenso Micro SD-HC Card UHS-1 32GB UKHS-I Premium |
| SanDisk | Ultra microSDHC UHS-I Card A1 32GB Class 10 (Red & Gray A1 version) |
| Philips | MicroSDHC card UHS-I U1 16GB |
| Bliksem | TF162 UHS-I C10, A1, 16GB |
| Kingston | Canvas Select Plus microSD memory card, 32GB |
| Kingston | High-Endurance microSD 32GB |
| SP Silicon Power | Elite Colorful microSDHC Card |
Â
We do not recommend these SD cards:
| Manufacturer | Model | Intenso | Intenso Micro SD-HC Card UHS-1 16GB UKHS-I Premium |
|---|---|
| SanDisk | Ultra microSDHC UHS-I Card 16GB Class 10 |
| Sandisk | Ultra microSDHC UHS-I Card 32GB (White & Gray version) |
| Philips | MicroSDHC card UHS-I U1 32GB |
| KOOTION | MicroSDHC 16GB |
| Goodram | M1AA, microSDHC, 16GB, Class 10, UHS-I |
| LinkMore | XV11 MicroSD 32GB Flash Memory Card, A1, UHS-I, U1, V10 32GB |
| EZVIZ | Smart Micro SD 32GB |
| ADATA | microSD 32GB UHS-I CLASS10 |
| Instrument Input | 1/4" mono jack |
| Main Output | 1/4" mono jack |
| REC Input | 1/4" mono jack, buffered |
| REC Output | 1/4" mono jack, buffered |
| Signal Path | Mono - all inputs, all outputs |
| Built-in Microphone | Electret condenser microphone |
| Power Requirements | 9V DC, center-negative, 500mA |
| MIDI In | 3.5mm TRS Type B |
| USB-C | Firmware updates & MIDI over USB |
| Spectral Processing Engine | High-resolution FFT-based vocoder |
| RESOLUTION Positions | High (1024) / Mid (512) / Low (256) |
| Max INPUT Latency | 40 ms FFT window |
| Total Internal Storage | 16 GB |
| Preset Slots | 234 (A1–Z9) |
| Maximum PHRASE Length | 10 minutes per slot |
| Recording Fidelity | 44100Hz, 16-bit |
| PHRASE Storage Quality | Full fidelity - no compression |
| Product Dimensions | LWH 140 x 125 x 50 mm (5.51 x 4.92 x 1.97 inch) |
| Product Weight | 600 g (1.3 lbs) |
