PLASMA PEDAL

This IS high voltage rock'n'roll

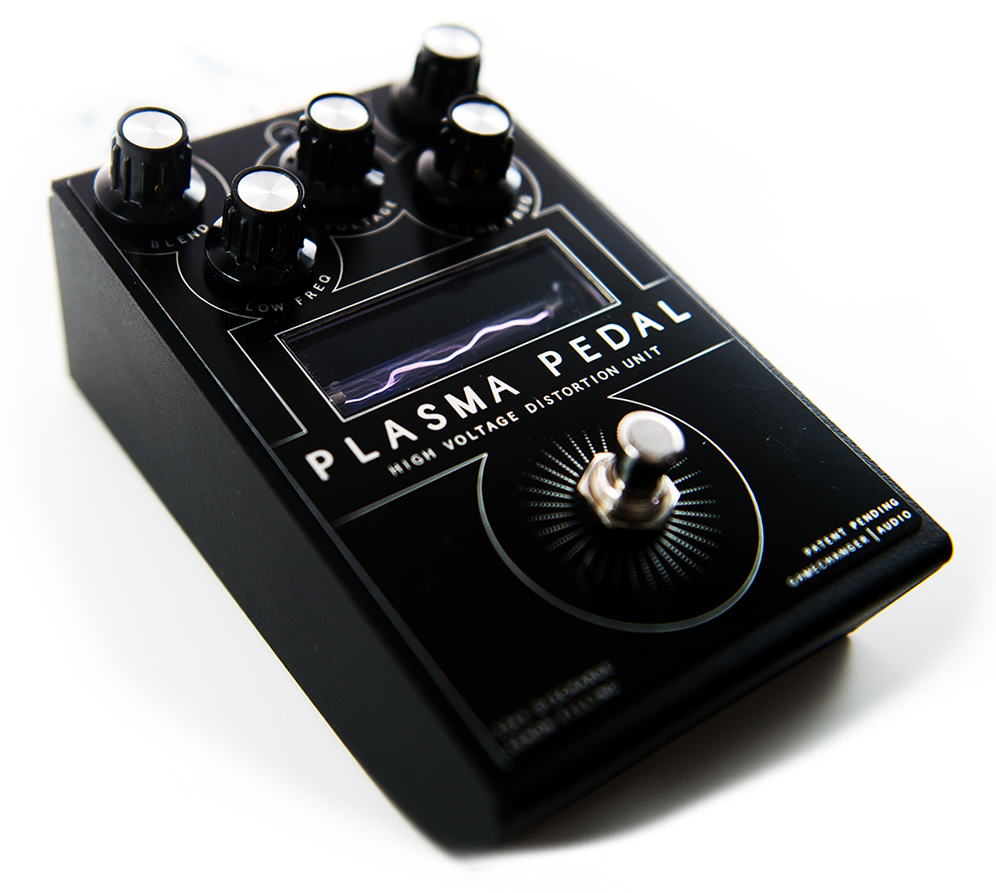

The PLASMA Pedal creates heavy distortion by amplifying an audio signal up to 3500 Volts and transforming it into electrical discharges. You are literally playing a bolt of electricity.

Available directly from GCA
Worldwide Express Shipping

HOW IT WORKS

Rather than relying on traditional LED, transistor or vacuum-tube circuits to produce overdrive, the PLASMA Pedal fundamentally redefines the way that signal clipping can be achieved.

Inspired by Nikola Tesla's electrical resonant transformer circuit design (the Tesla Coil), it is the first effects unit to introduce a new method for signal clipping by converting the input signal into pure electrical discharges.

CREATE A BOLT OF LIGHTNING

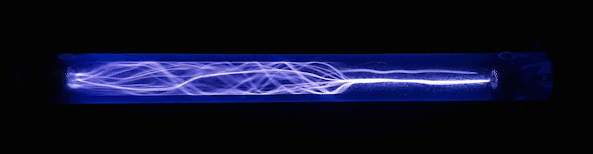

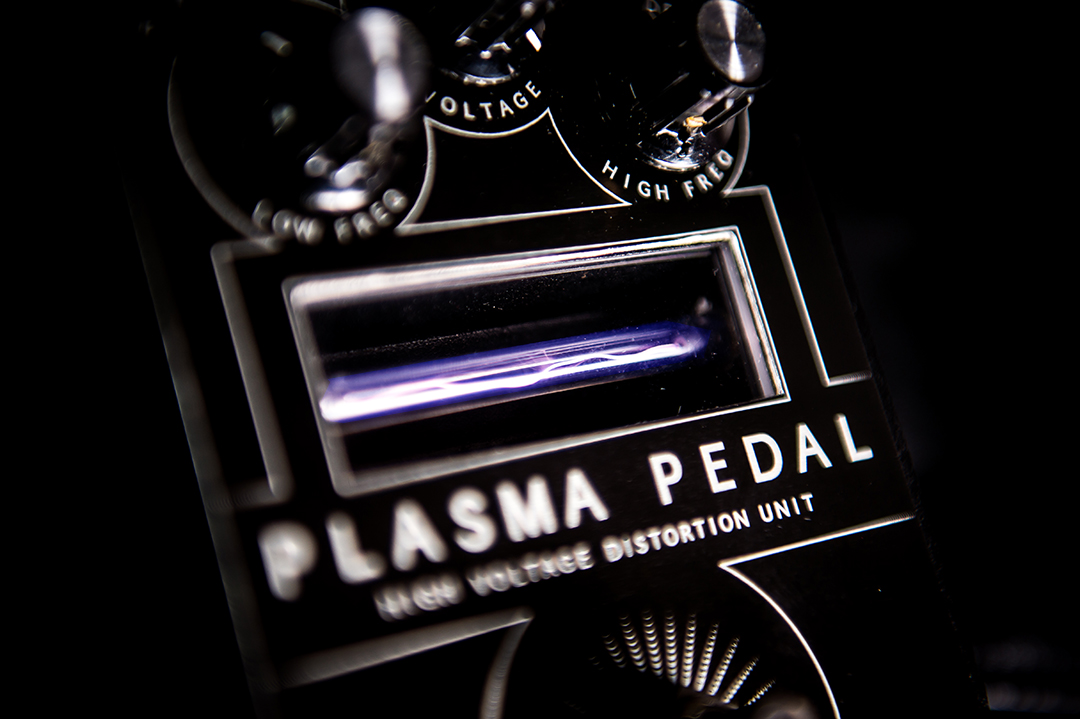

The blue light visible on the pedal's front panel is the actual electrical arc created by the audio input as it travels between two electrodes on either end of a specially designed xenon-filled gas discharge tube.

These continuous bursts of electricity are then instantly converted back to the analog audio level using a specialized analog rectifier circuit. The result is a rich and saturated distortion texture, with screeching sharp overtones, harmonics and sputtery bursts.

UNIQUE HARMONIC SATURATION

The unique noise artifacts created as a byproduct of the high-voltage discharges are uncommon in traditional signal amplification, and therefore PLASMA Pedal’s distortion sound is unlike any other high-gain effects unit.

VOLTAGE CONTROL

You can use the PLASMA Pedal's VOLTAGE knob to change the signal threshold necessary for a connection to be made in the gas discharge tube. This lets you dial in various sweet-spots - ranging from wide-open sustain for days, to chopped, sputtery gated sounds with extreme contrasts between individual notes and chords.

BLEND CONTROL & EQ

THE PLASMA Pedal has a dedicated BLEND knob that lets you combine the PLASMA distortion with your instrument's clean signal or with other effects and gainstages. There is also an extremely powerful on-board EQ section that lets you add a massive LOW or HIGH frequency boost.

The EQ section can be adjusted via a toggle switch to affect either the PLASMA Drive section or both the PLASMA and CLEAN signals.

PLASMA PEDAL IN ACTION

PLASMA PEDAL

$299.00

  • Lifetime Warranty
  • 30 Day Money Back Guarantee
  • The PLASMA Pedal doesn’t come with a free power supply.  Gamechanger Audio PLASMA Pedal requires a standard pedal power supply – Barrel plug – 2.1 x 5.5 mm with a center-negative polarity with 9V DC and at least 250 mA.

United States: No Sales Tax for US Orders

European Union: VAT will be added to orders without an EU-VAT number

All other countries may face customs duties

Read Less Tax Information

You may cancel your order any time by emailing us at [email protected]

PLASMA PEDAL

$299.00

  • United States: No Sales Tax for US Orders
  • European Union: VAT will be added to orders without an EU-VAT number
  • All other countries may face customs duties
  • Lifetime Warranty
  • 30 Day Money Back Guarantee
  • The PLASMA Pedal doesn’t come with a free power supply.  Gamechanger Audio PLASMA Pedal requires a standard pedal power supply – Barrel plug – 2.1 x 5.5 mm with a center-negative polarity with 9V DC and at least 250 mA.

    You may cancel your order any time by emailing us at [email protected]

TECHNICAL SPECIFICATION

Input type1/4” Unbalanced TS
Input impedance1MΩ
Max Input Level7Vpp (+10dBu)
Output Type1/4” Unbalanced TS
Output Impedance100Ω
Max Output Level7Vpp (+10dBu)
Power ConnectorCenter negative 2.1 x 5.5 mm barrel plug (the standard 9V)
Frequency Response20Hz to 22kHz
EQ LOW FRQ Boost/Cut± 9dB, 600Hz corner Freq.
EQ HI FREQ Boost/Cut± 10dB, 1.5kHz corner freq.
IndicatorCheck indicator white LED
ConnectorsIN, OUT, DC input
Power Requirements300mA, 9VDC
Peak Power Consumption2.7 W
Mean Power Consumption1 W
Power Consumption during Stand-by0.025 W
Dimensions148 mm * 96 mm * 70 mm
Weight840 g / 1.8 lbs
Read Less Read All

TECHNICAL SPECIFICATIONS

Input type1/4” Unbalanced TS
Input impedance1MΩ
Max Input Level7Vpp (+10dBu)
Output Type1/4” Unbalanced TS
Output Impedance100Ω
Max Output Level7Vpp (+10dBu)
Power ConnectorCenter negative 2.1 x 5.5 mm barrel plug (the standard 9V)
Frequency Response20Hz to 22kHz
EQ LOW FRQ Boost/Cut± 9dB, 600Hz corner Freq.
EQ HI FREQ Boost/Cut± 10dB, 1.5kHz corner freq.
IndicatorCheck indicator white LED
ConnectorsIN, OUT, DC input
Power Requirements300mA, 9VDC
Peak Power Consumption2.7 W
Mean Power Consumption1 W
Power Consumption during Stand-by0.025 W
Dimensions148 mm * 96 mm * 70 mm
Weight840 g / 1.8 lbs
