PLASMA VOICE

A Eurorack synthesizer module that generates sounds through the manipulation of high-voltage electrical discharges

Available directly from GCA, Worldwide Express Shipping

PLASMA VOICE

A Eurorack synthesizer module that generates sounds through the manipulation of high-voltage electrical discharges

Available directly from GCA, Worldwide Express Shipping

PLASMA DRIVE EURORACK

HOW IT WORKS

PLASMA Voice generates sounds through the manipulation of high-voltage electrical discharges between two electrodes on a specially designed xenon-filled gas tube.
These discharges are converted to analog audio using a specialized rectifier circuit. The result is a mesmerizing electric sound that matches the visual intensity of the blue bolt of electricity.
The electric discharges are driven by a proprietary ultrasound pulse-width oscillator.

PLASMA VOICE - HOW IT WORKS

PLASMA Voice generates sounds through the manipulation of high-voltage electrical discharges between two electrodes on a specially designed xenon-filled gas tube.

These discharges are converted to analog audio using a specialized rectifier circuit. The result is a mesmerizing electric sound that matches the visual intensity of the blue bolt of electricity.

The electric discharges are driven by a proprietary ultrasound pulse-width oscillator.

You SHAPE THE ELECTRICAL DISCHARGE

This oscillator is modulated by predefined samples and envelope shapes (or SOUNDS for simplicity’s sake) that you can select, trigger, waveshape and modulate with sliders and CV inputs.

You shape the electric discharge.

The oscillator is modulated by predefined samples and envelope shapes (or SOUNDS for simplicity’s sake) that you can select, trigger, waveshape and modulate with sliders and CV inputs.

EXPERIENCE NEW SONIC POSSIBILITES

The module features selectable SOUNDS that are organized into BANKS each dedicated to specific musical parts.

1 BASS
2 LEAD
3 PLUCK
4 DRUM
5 METAL
6 STATIC
7 SPARK

The SLIDERS allow you to modify each SOUND, often transforming it beyond the intended use defined by the BANK. We invite you to explore the sonic possibilities both wonderful and strange.

FULLY INDEPENDENT PLASMA VOICE

PLASMA Voice is the latest addition to our PLASMA product line. Although it shares the same technology, previous products were specifically designed as distortion units. Most of the sound shaping parameters were set at optimal sweet spots to ensure stable distortion.

By utilizing the full potential of modulating the tube’s driver, we have created the first PLASMA product that doesn’t need an external sound source. It is a fully independent voice on its own.

FEATURE LIST

Plasma Voice engine

Analog signal path

Controls

CV & TRIGG

Settings options

MIDI

Tech Specs

Plasma Voice engine

Proprietary plasma tube driver and electromagnetic discharge detector
49 transformable SOUNDS across 7 BANKS
SOUNDS are complex digital synth engines that modulate the PLASMA tube driver to achieve various sounds. The engine building blocks are tube driver pulse width and frequency modulation, sample pitch modulation, envelope time stretch, wavefold, crossmod, suboctave modulation

Analog signal path

Soft clipping DRIVE circuit
BASS and TREBLE frequency boost/cut EQ section

Analog state variable VCF (selectable 12dB/Oct LP or HP) with resonance amplifier
Analog output VCA
VCF and VCA are digitally controlled with internal analog control voltages
Audio output level +/-8V max

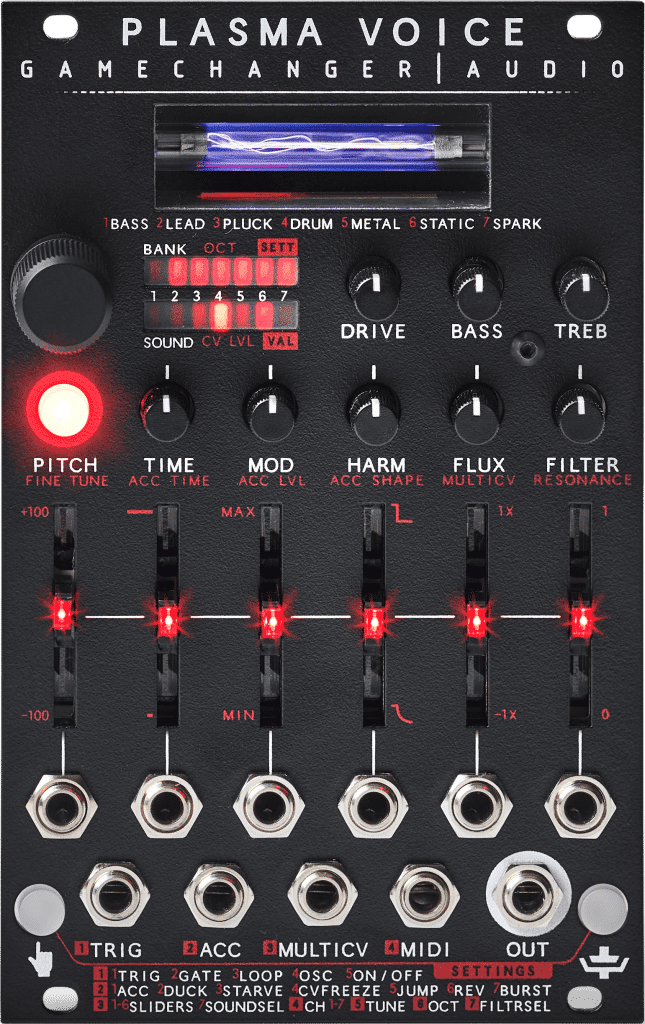

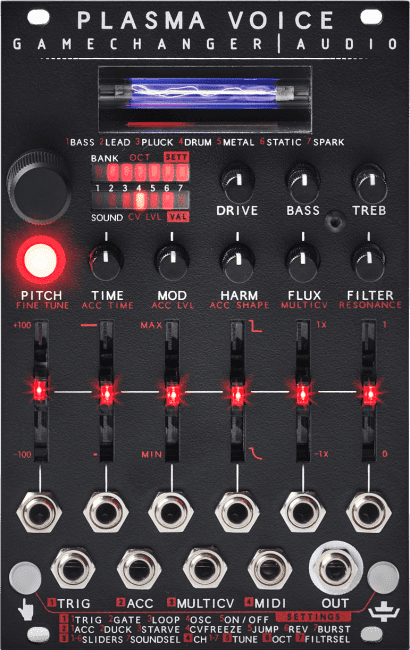

Controls

6 center Indent SLIDER potentiometers
- PITCH +/- 1 oct (fine tune and octave settings are also available)
- TIME – envelope time stretch
- MOD – pitch modulation effect
- HARM – harmonic content effect
- FLUX – electric artefact effect
- FILTER – cutoff with and without envelope modulation
5 center indent ATTENUVERTERS for CV inputs
ALT button for accessing the alternative SLIDER functions for FINE TUNE, ACCENT parameters and FILTER RESONANCE
Manual TRIGGER / GATE button
CLUTCH button for temporary parameter editing buffer
Push & turn ENCODER and a 7:7 LED indicator for SOUND & BANK selection, octave select and navigating the settings menu

CV & TRIGG

7 CV inputs. One for each SLIDE and 1 assignable MULTI CV input as an additional CV for any of the SLIDERS or BANK & SOUND selection
Pitch CV 1V/Oct, +/-10V range
Parameter CV, +/-5V range
TRIGGER and ACCENT inputs: 2V minimum, rising and falling edge detect.
5 TRIGGER input modes: TRIG, GATE, LOOP, OSC, ON/OFF
7 ACCENT modes: ACC, DUCK, STARVE, CVFREEZE, JUMP, REVERSE, BURST

Settings options

5 TRIGGER modes
(TRIG, GATE, LOOP, OSCILLATE, ON/OFF)
7 ACCENT modes
(ACENT, DUCK, STARVE, CV FREEZE, PITCH JUMP, REVERSE, BURST)
MULTICV assignment
MIDI channel select
Center pitch select
Master octave offset
FILTER mode select
Auto save of all settings

MIDI

3.5mm MIDI IN jack, (DIN5 to 3.5mm adapter included)
MIDI support: Notes, Velocity, CC panel control, PC BANK & SOUND change, PC settings change, Channel 10 General Percussion Key Map, Pitchwheel, Modwheel
Potential firmware update via MIDI SysEx

Tech Specs

Voltage: +/-12V DC, (10-16 pin cable included)
Power draw: Peak 220mA at +12V (mean 75mA), 35mA at -12V. 0 at +5V
Size: 16HP (W x H: 81.3 x 128.5mm)
Max depth: 35mm excl. knobs, 54mm incl. knobs
Mass: 190g

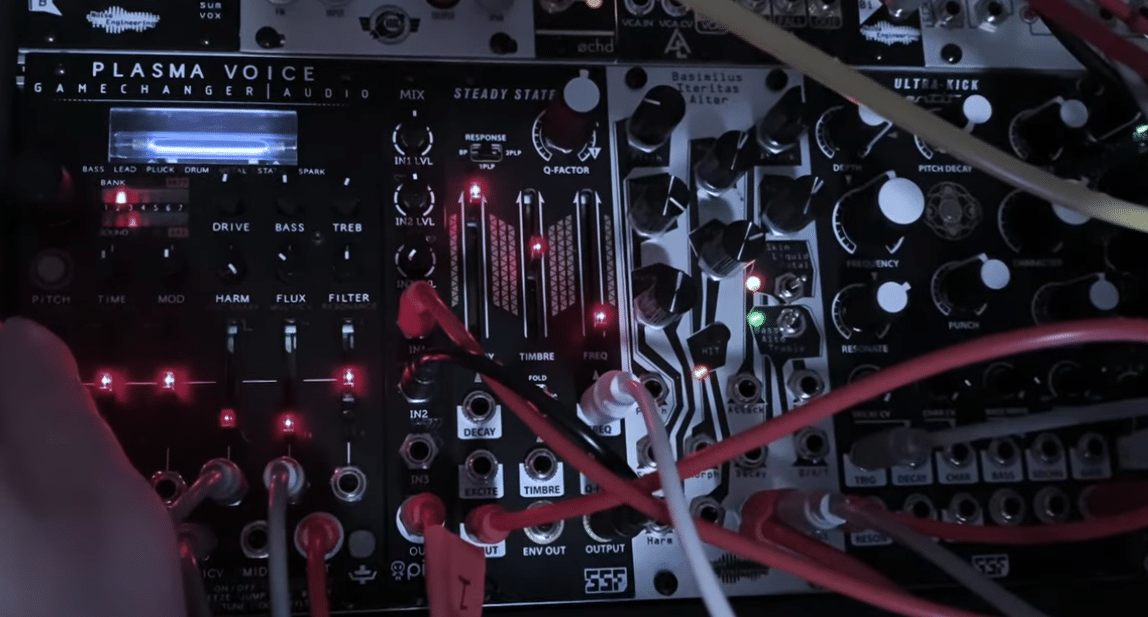

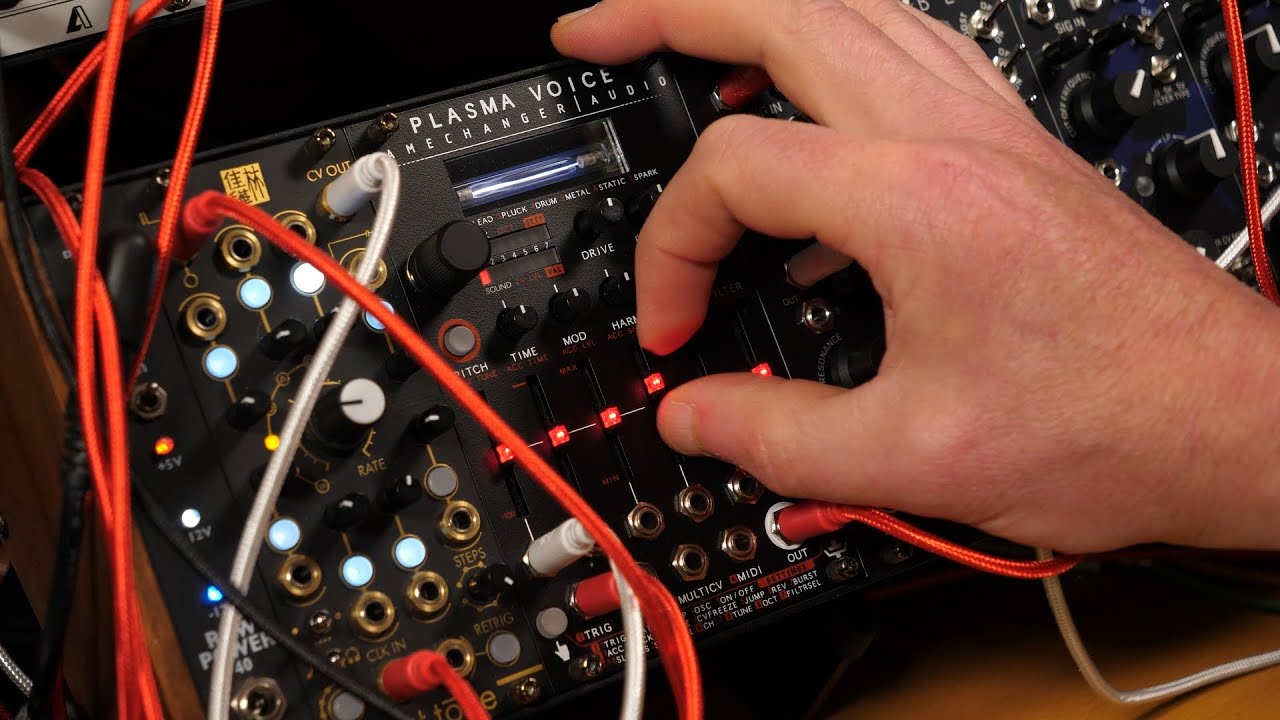

PLASMA VOICE IN ACTION

Take a look at how the PLASMA Drive Eurorack interacts with other gear and eurorack modules:

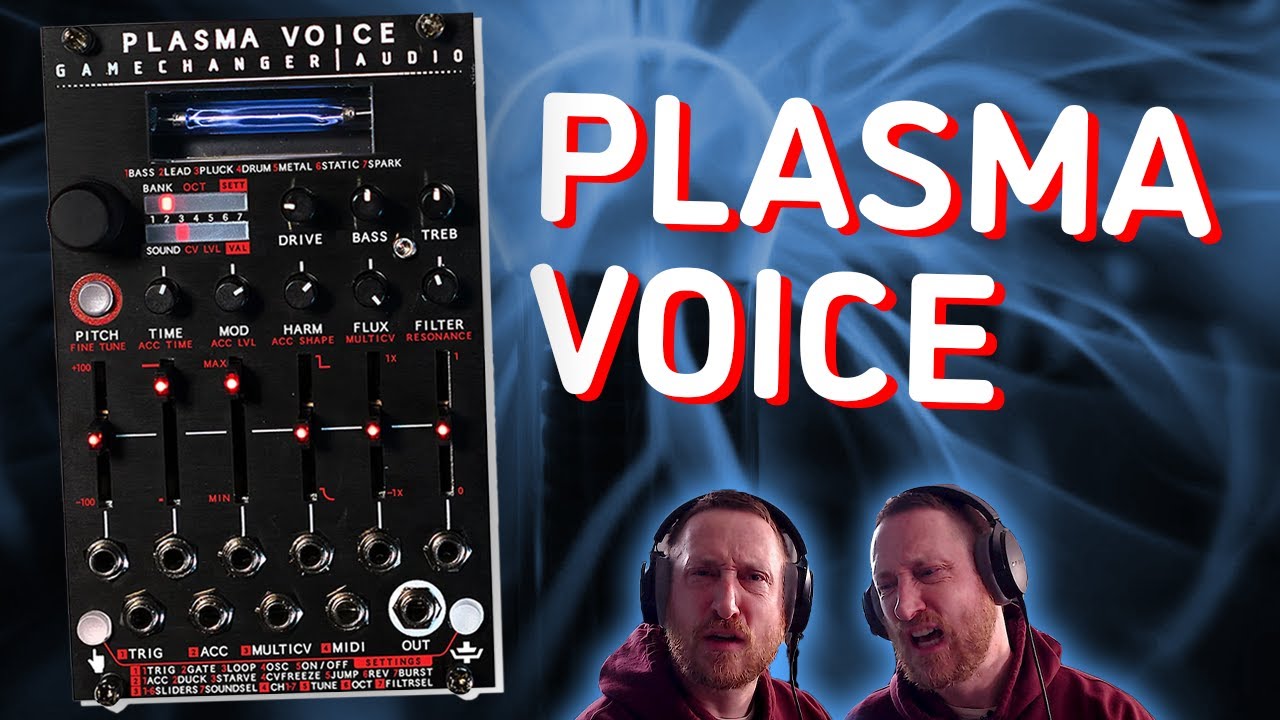

Mylar Melodies - Tiny Techno

Molten Music - (Holy Crap!)

Red Means Recording - Changing the Game

A Basic Jam - Dave Clay / AFTRX

Find PLASMA VOICE on modular grid

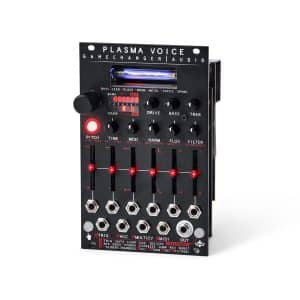

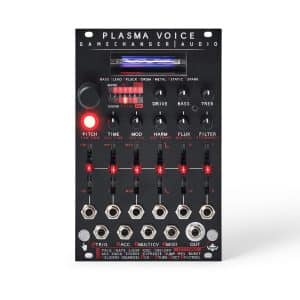

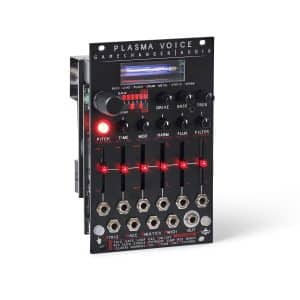

PLASMA VOICE Eurorack module

Lifetime Warranty
30 Day Money Back Guarantee
A power supply is not included. It is powered via a conventional eurorack PSU ribbon cable of ±12VDC, 300 mA (positive rail 200 mA, negative rail 100 mA)
Taxes:
United States: No Sales Tax for US Orders
European Union: VAT will be added to orders without an EU-VAT number
All other countries may face customs duties

You may cancel your order any time by emailing us at [email protected]

PLASMA VOICE Eurorack

€412.00

Lifetime Warranty
30 Day Money Back Guarantee
A power supply is not included. It is powered via a conventional eurorack PSU ribbon cable of ±12VDC, 300 mA (positive rail 200 mA, negative rail 100 mA)
Taxes:
United States: No Sales Tax for US Orders
European Union: VAT will be added to orders without an EU-VAT number
All other countries may face customs duties

You may cancel your order any time by emailing us at [email protected]
